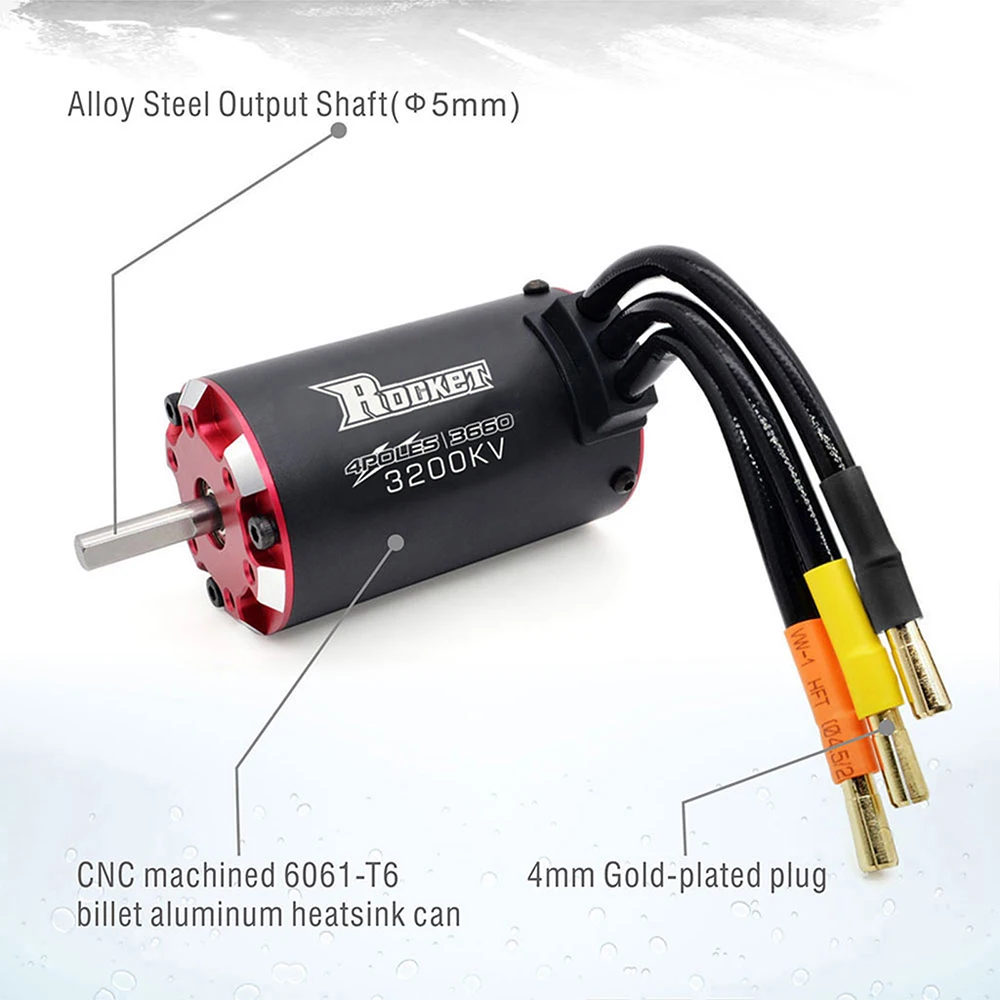

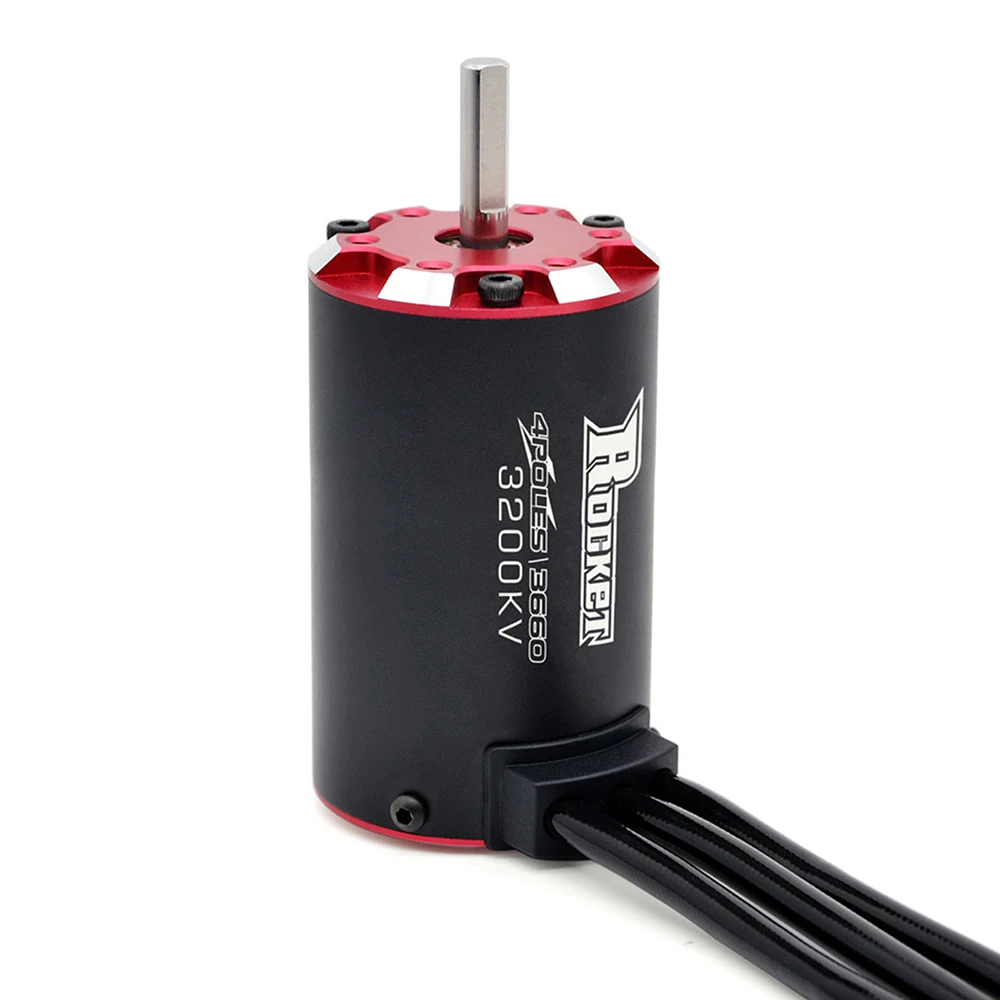

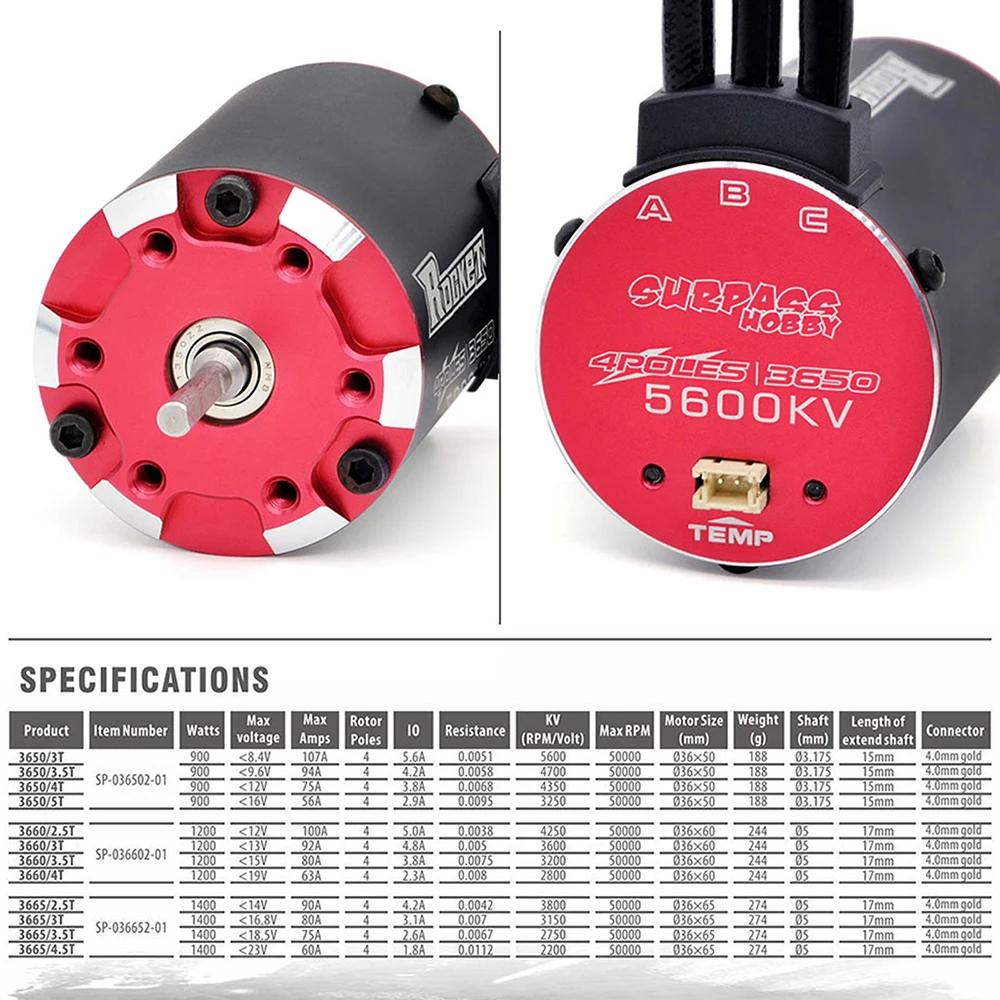

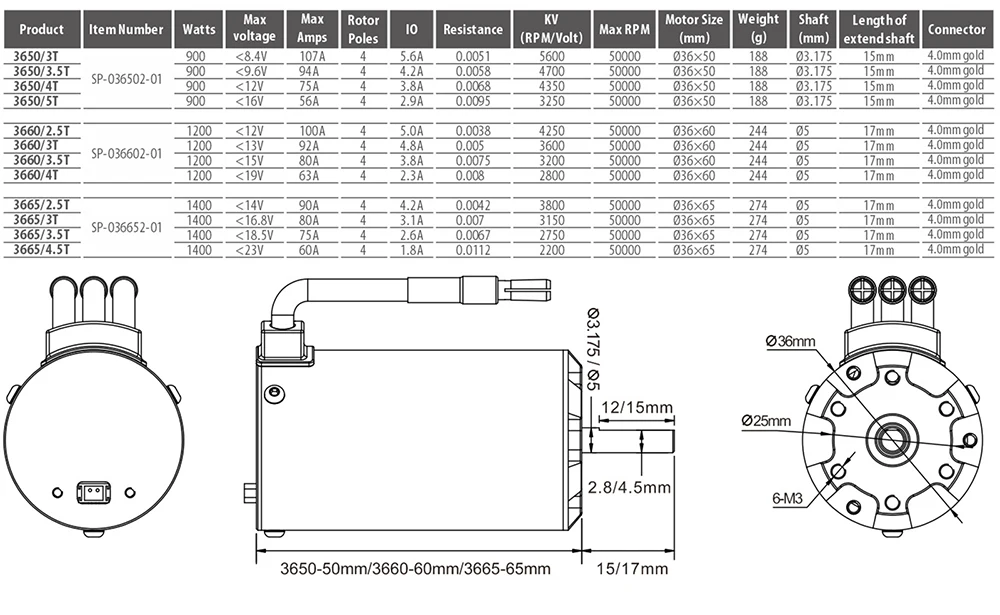

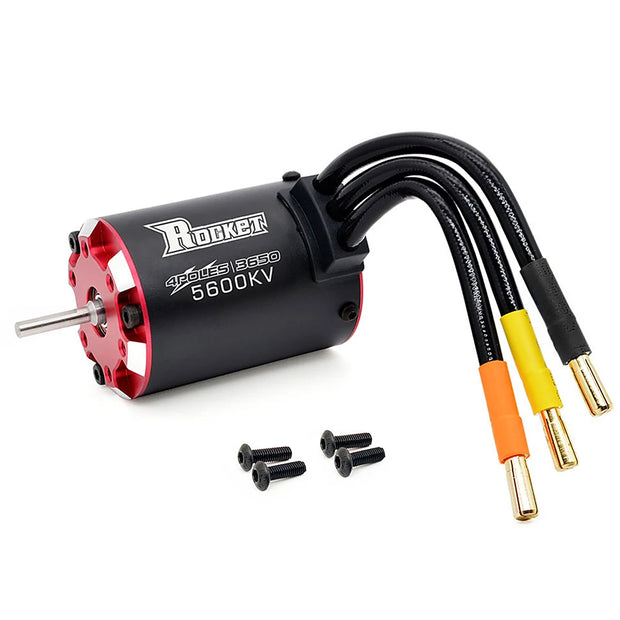

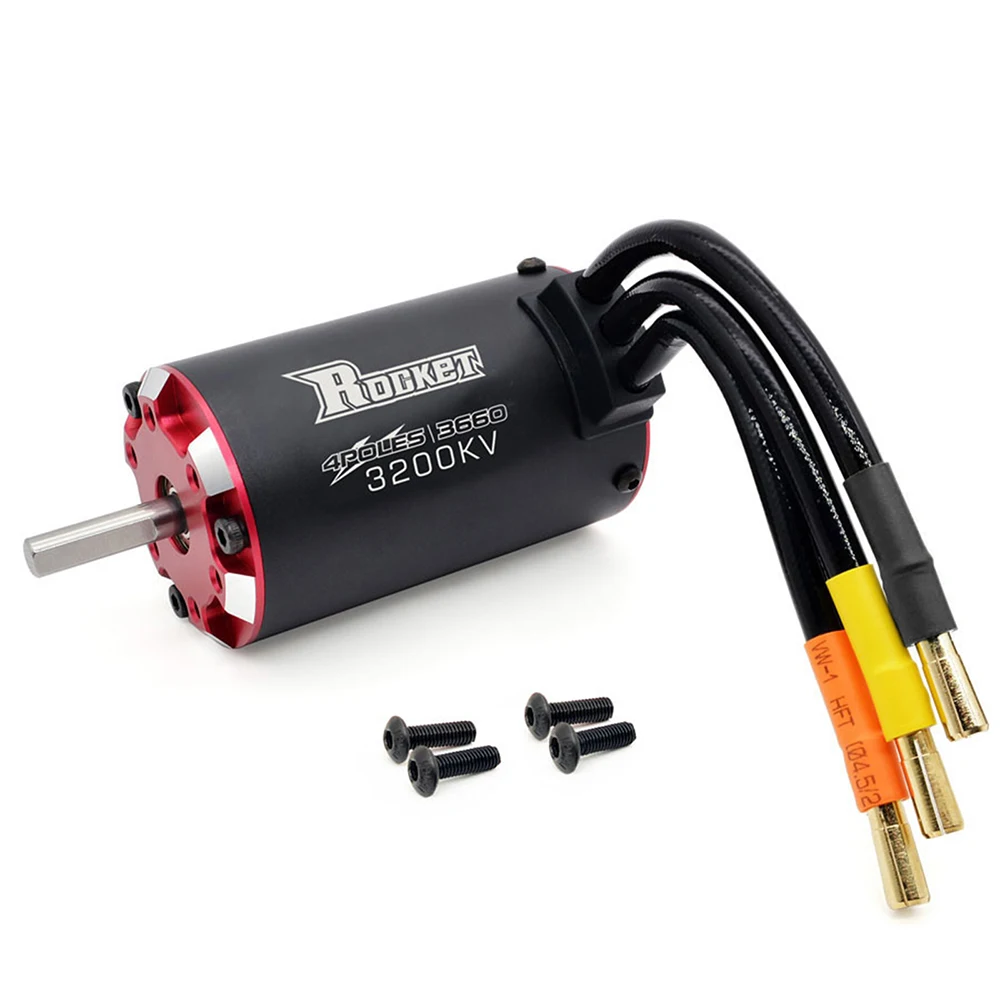

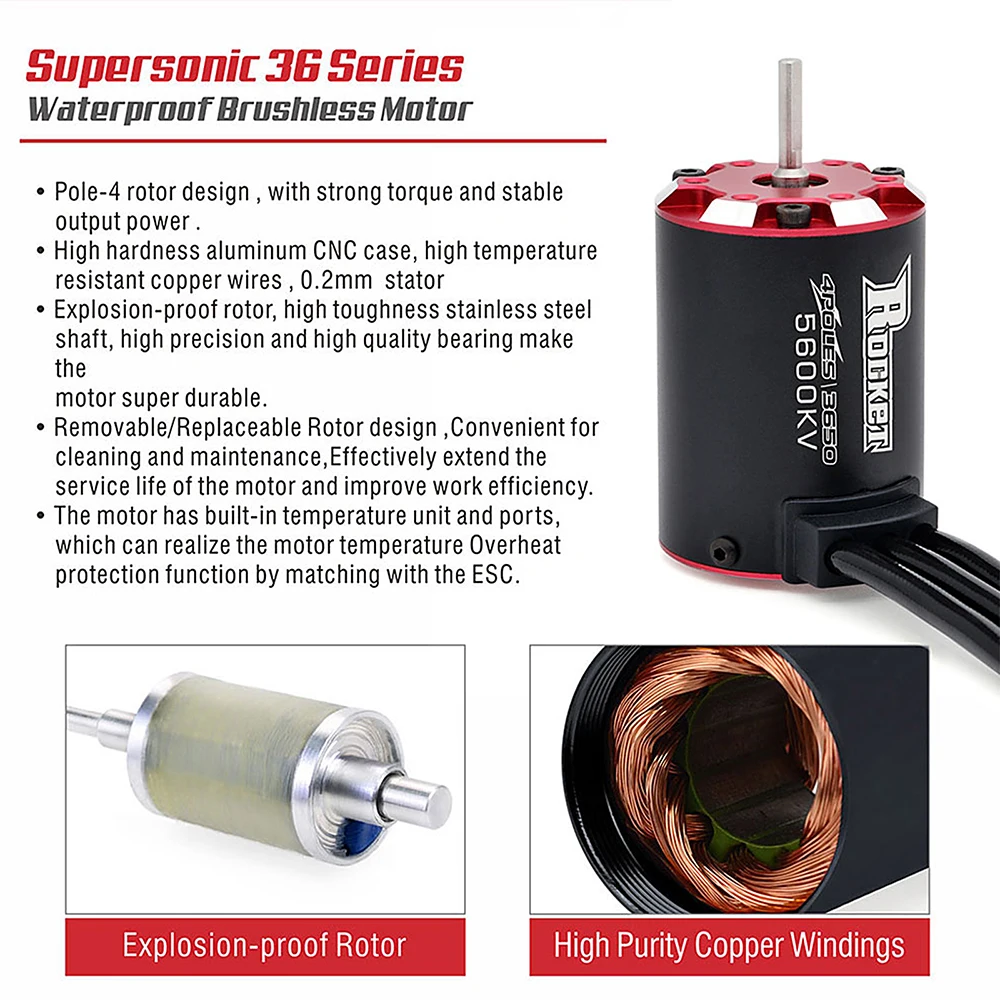

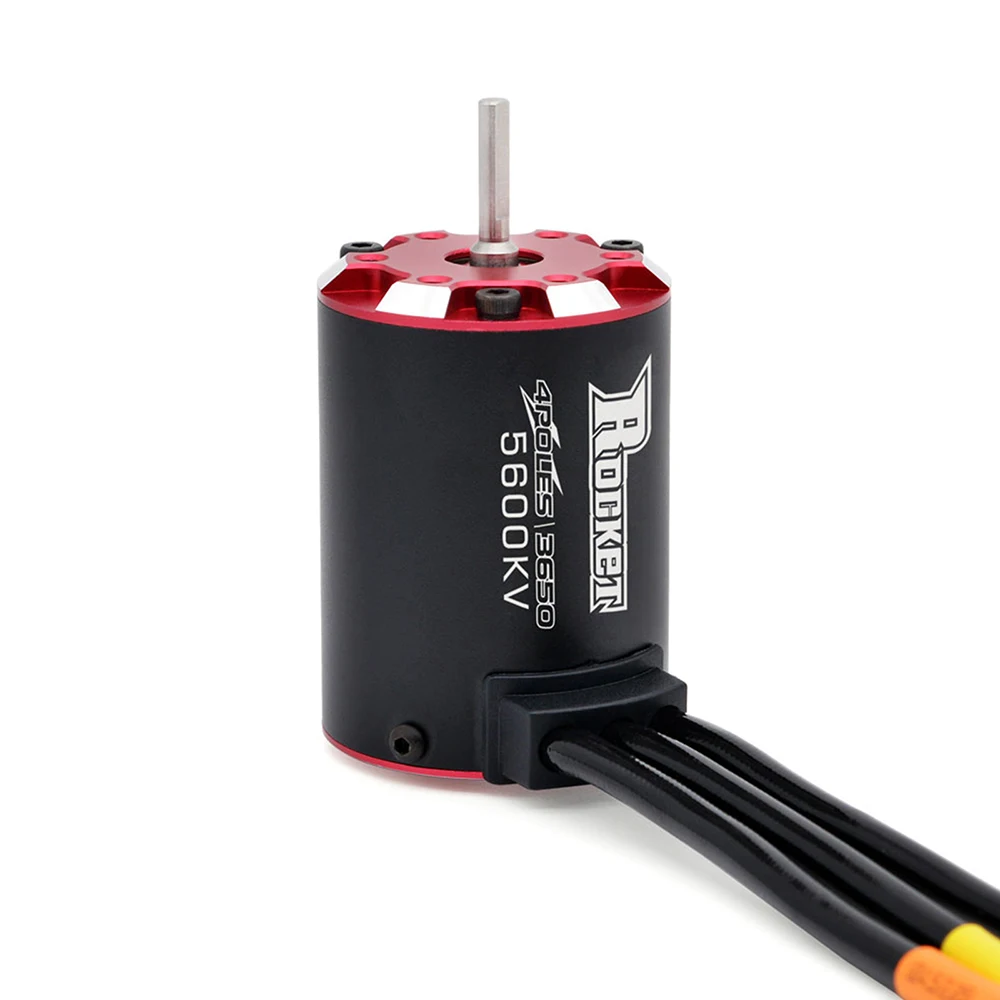

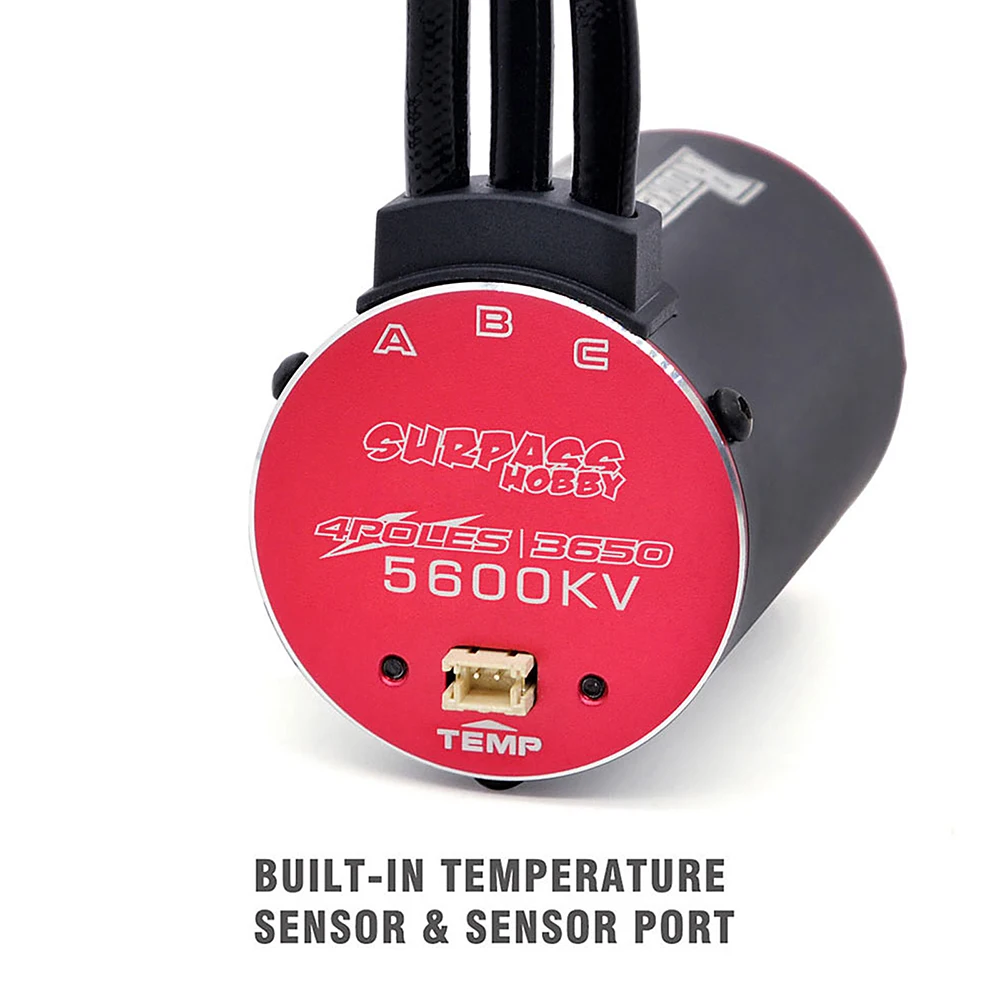

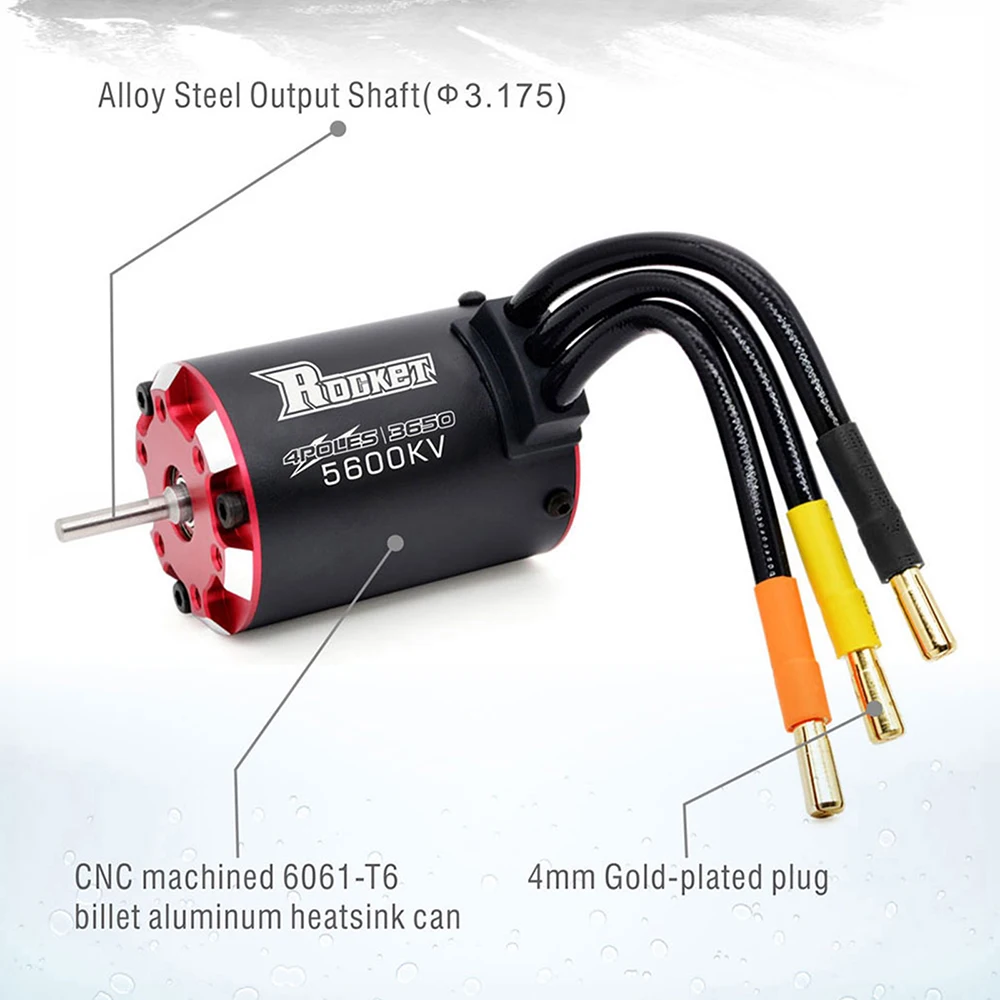

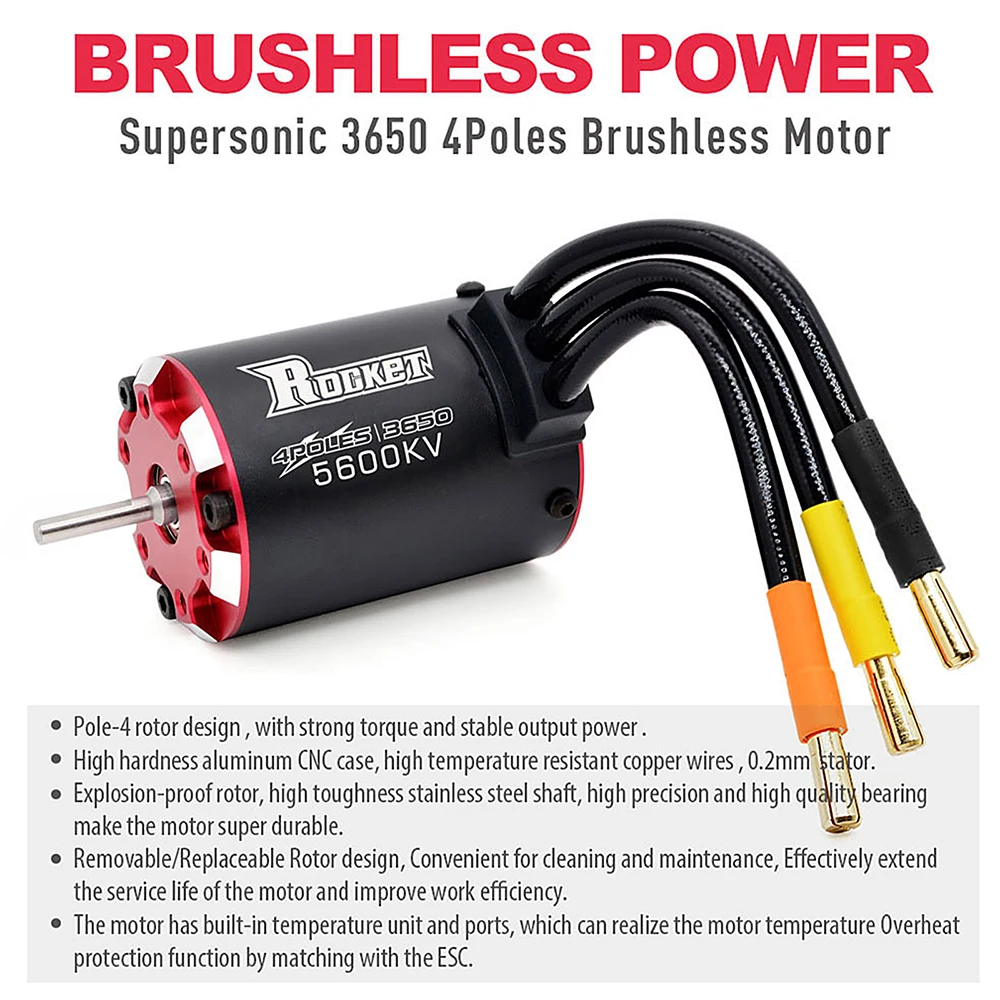

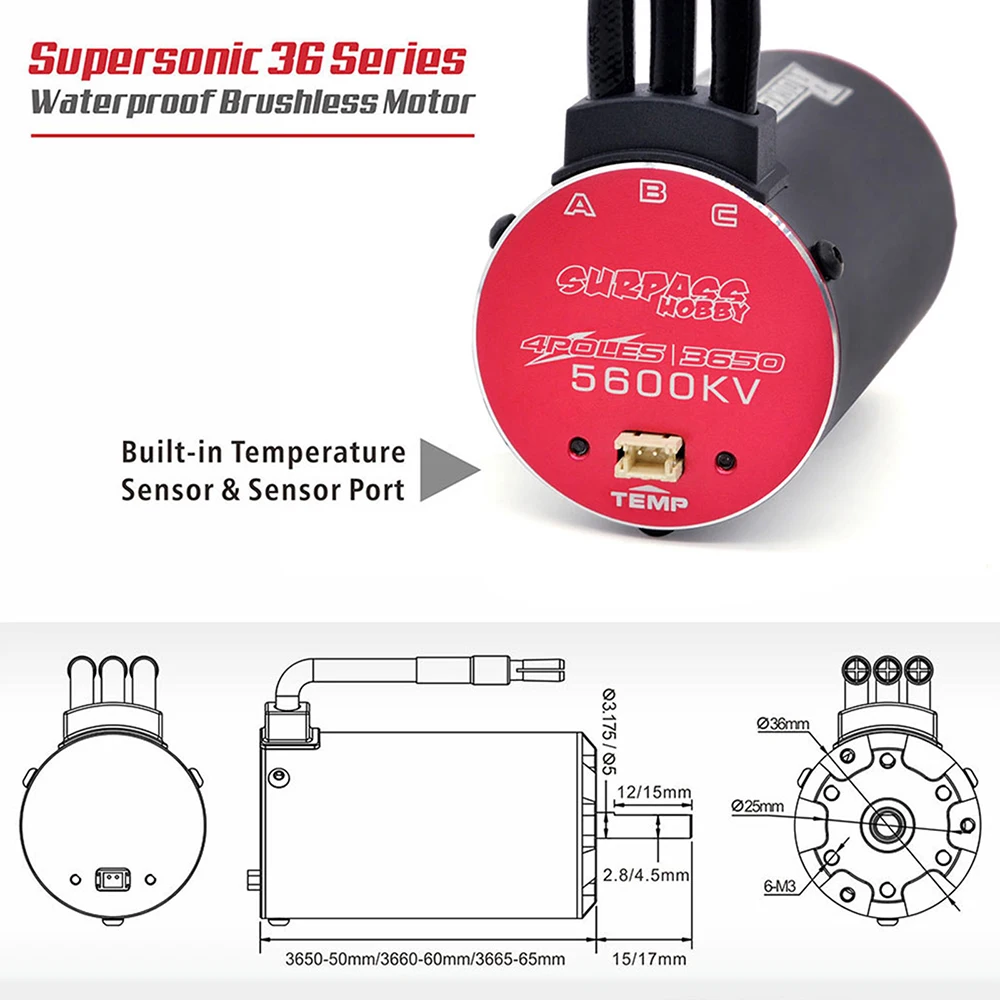

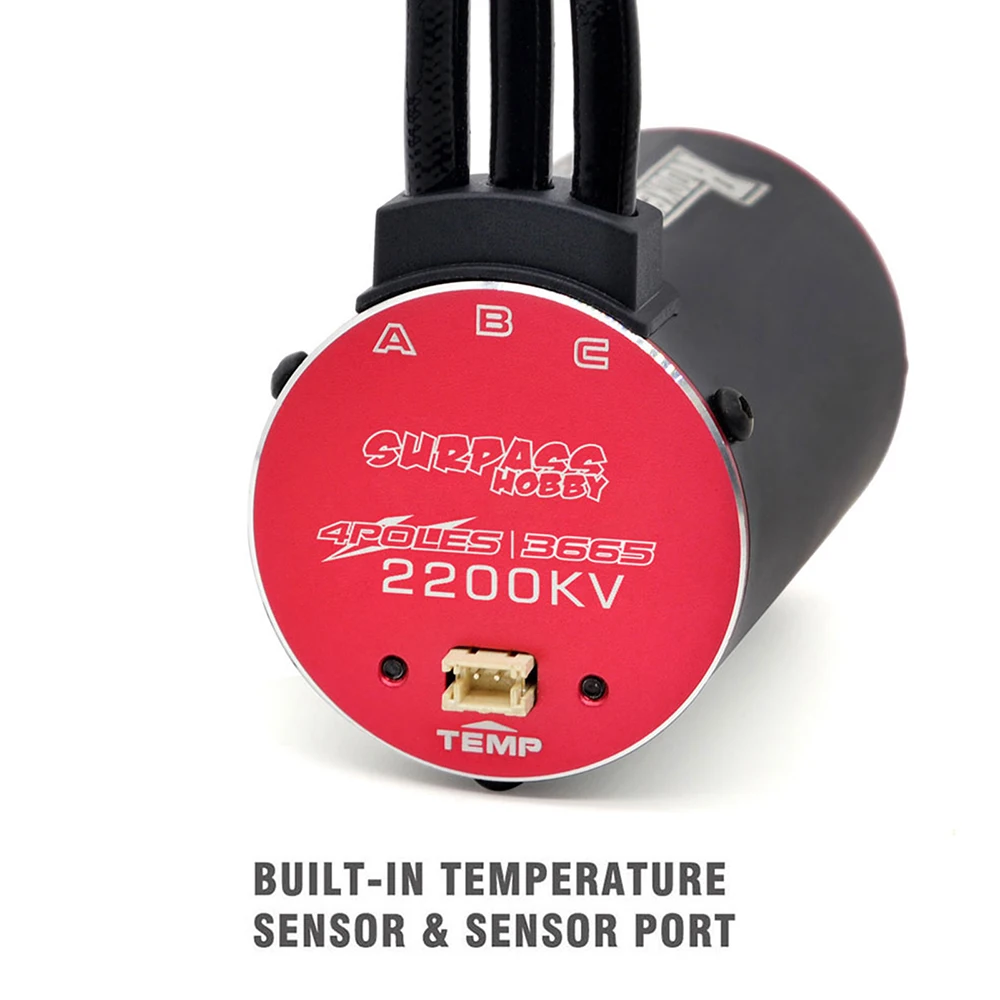

Motor Features: Pole-4 rotor design , with strong torque and stable output power . High hardness aluminum CNC case, high temperature resistant copper wires , 0.2mm stator. Explosion-proof rotor, high toughness stainless steel shaft, high precision and high quality bearing make the motor super durable. Removable/Replaceable Rotor design, Convenient for cleaning and maintenance, Effectively extend the service life of the motor and improve work efficiency. The motor has built-in temperature unit and ports, which can realize the motor temperature overheat protection function by matching with the ESC.

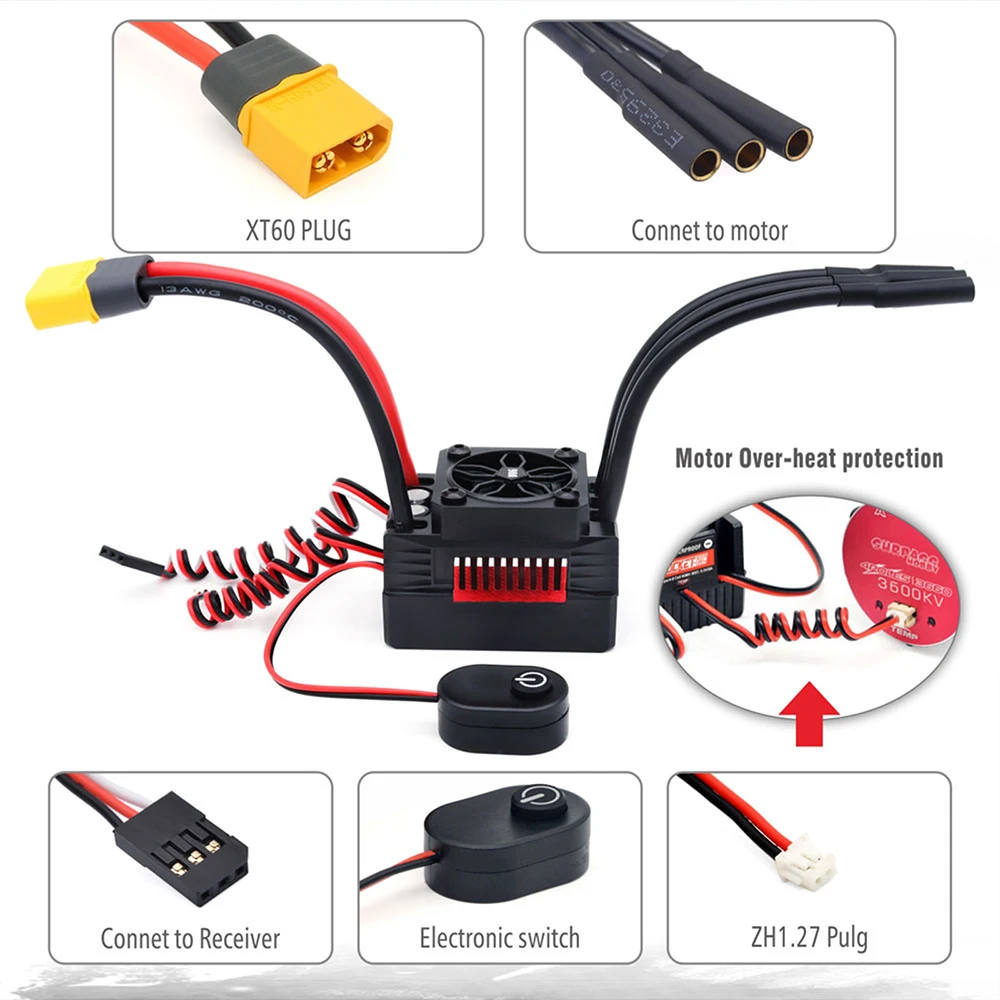

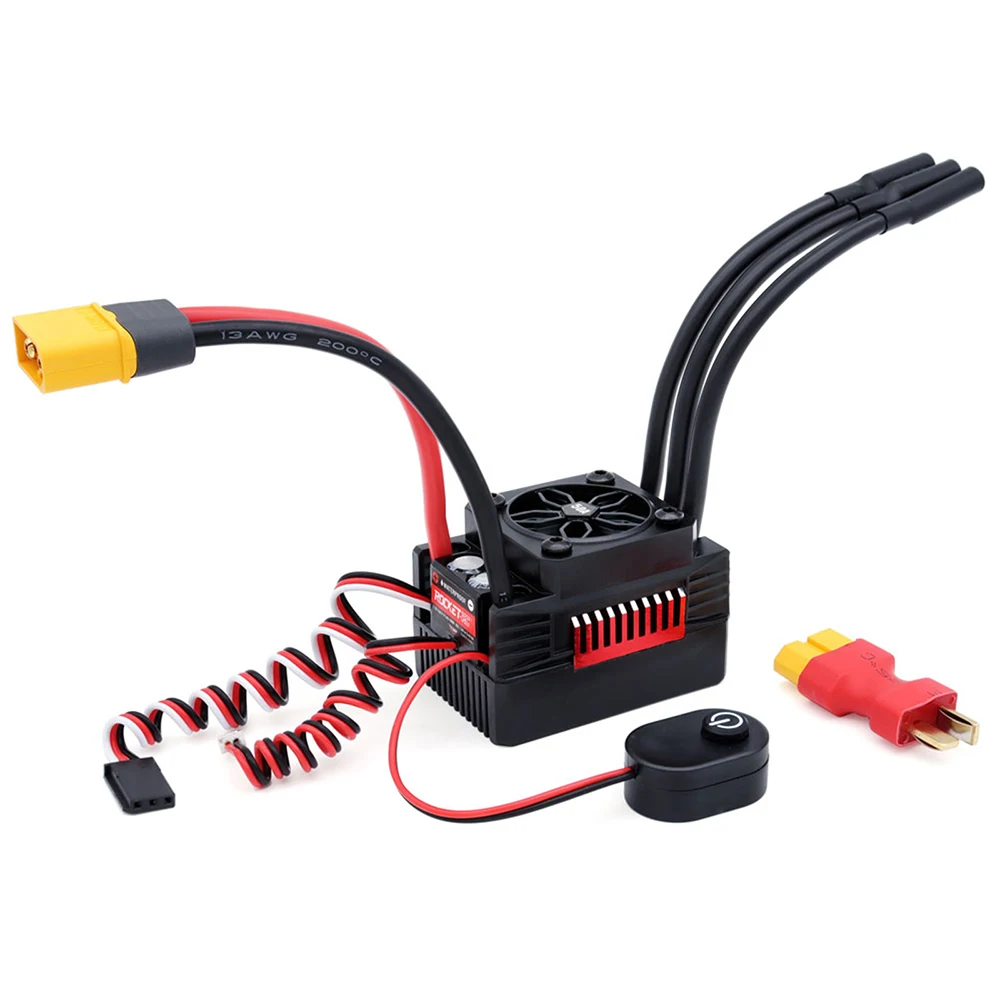

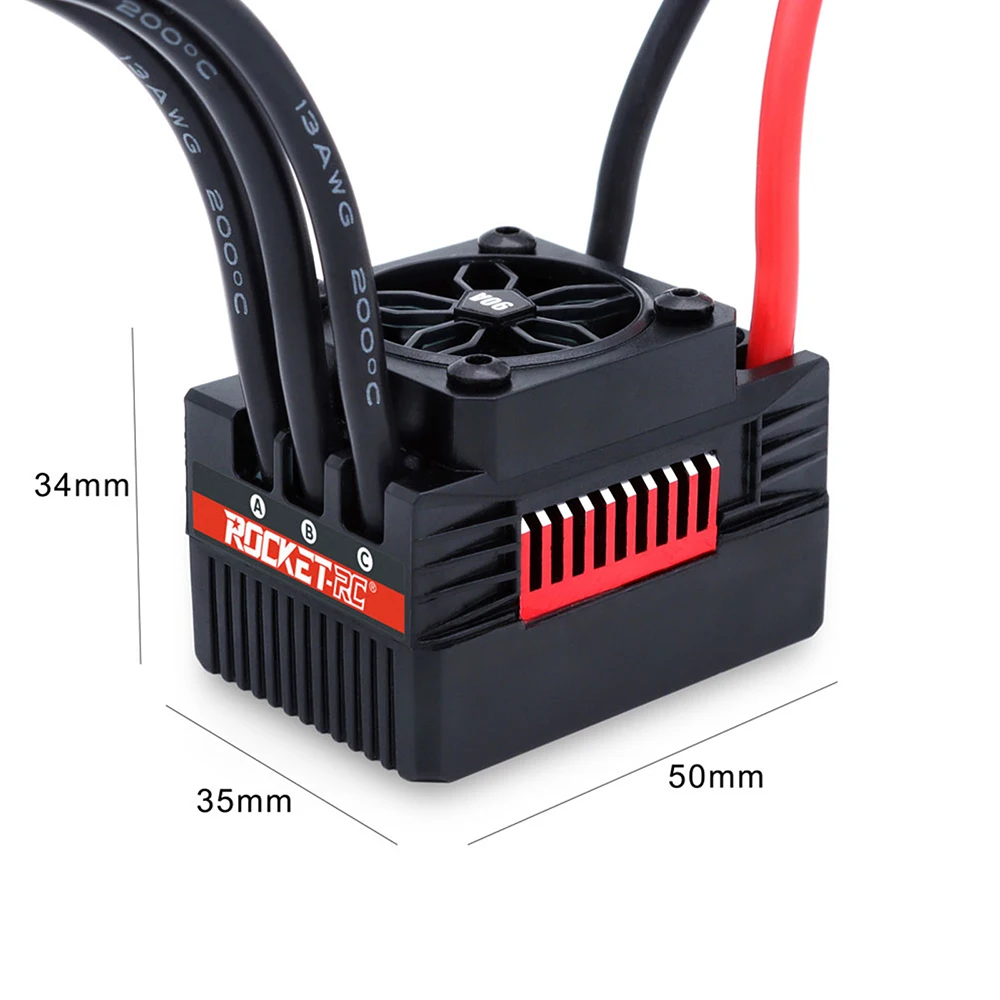

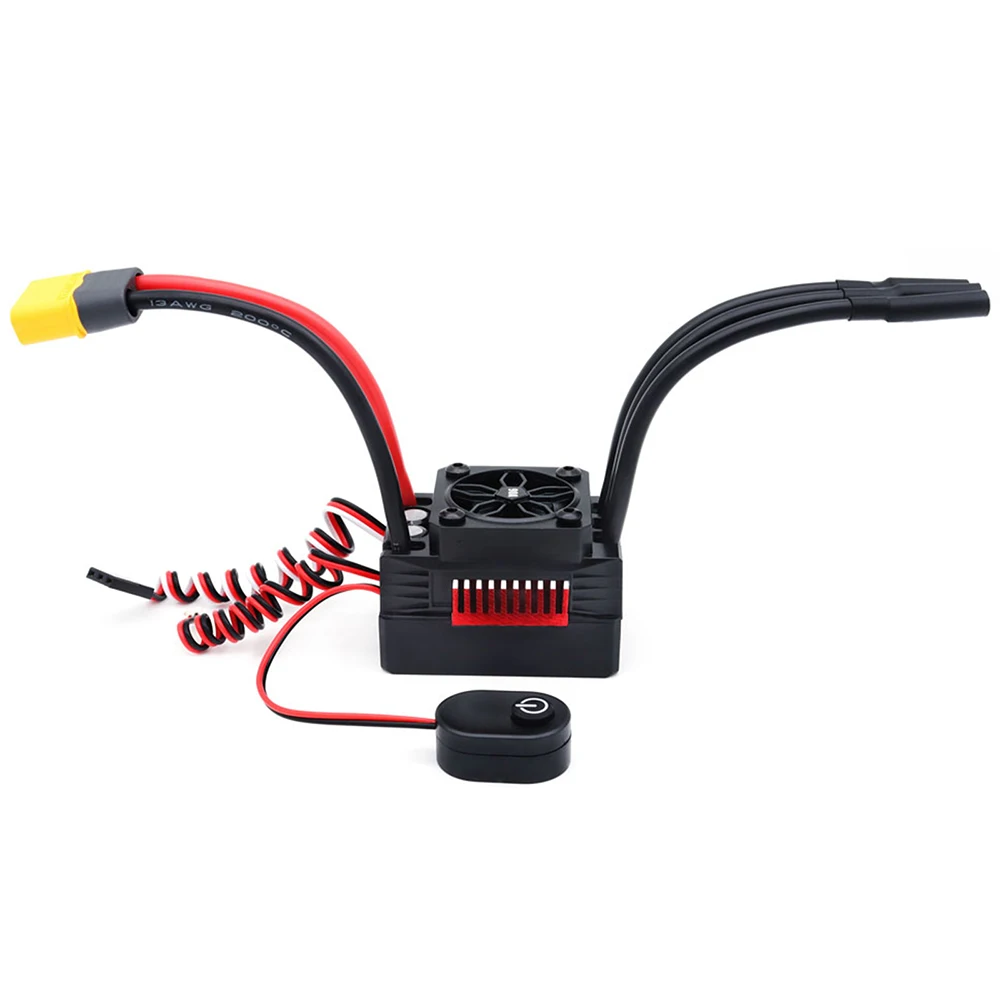

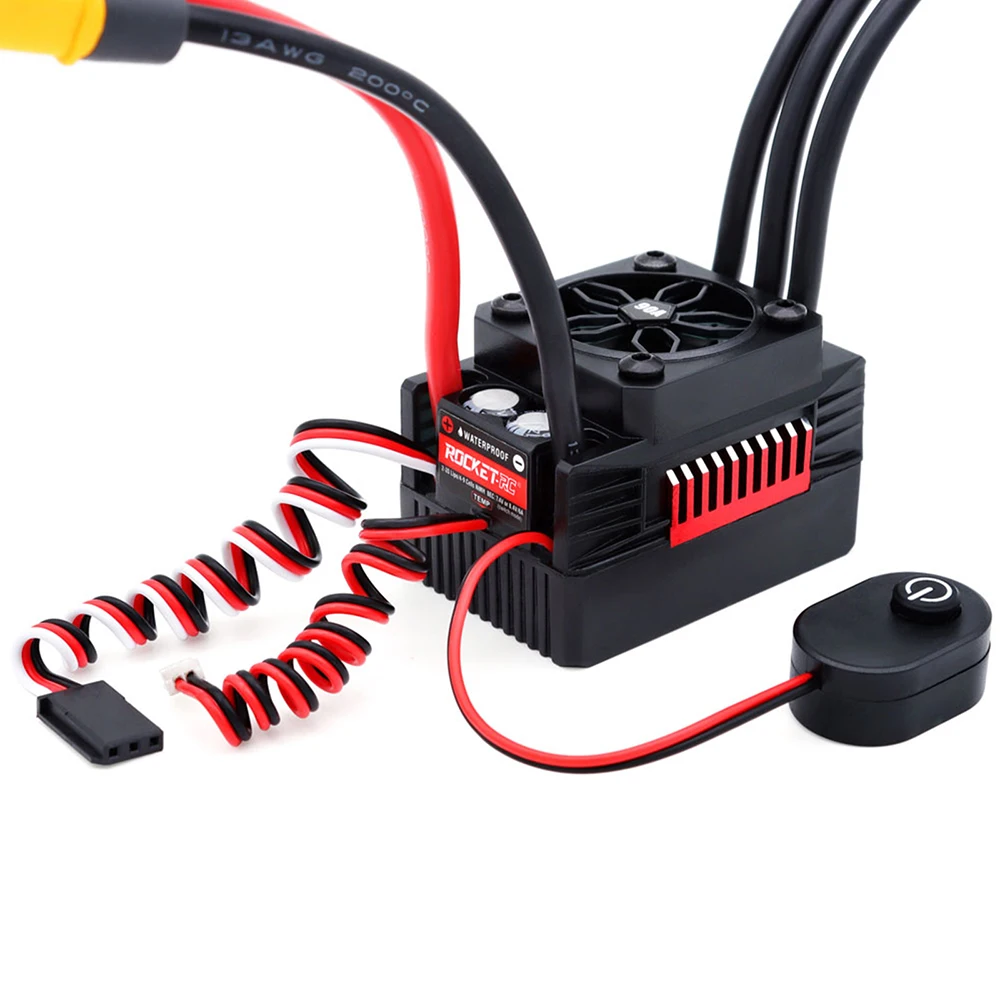

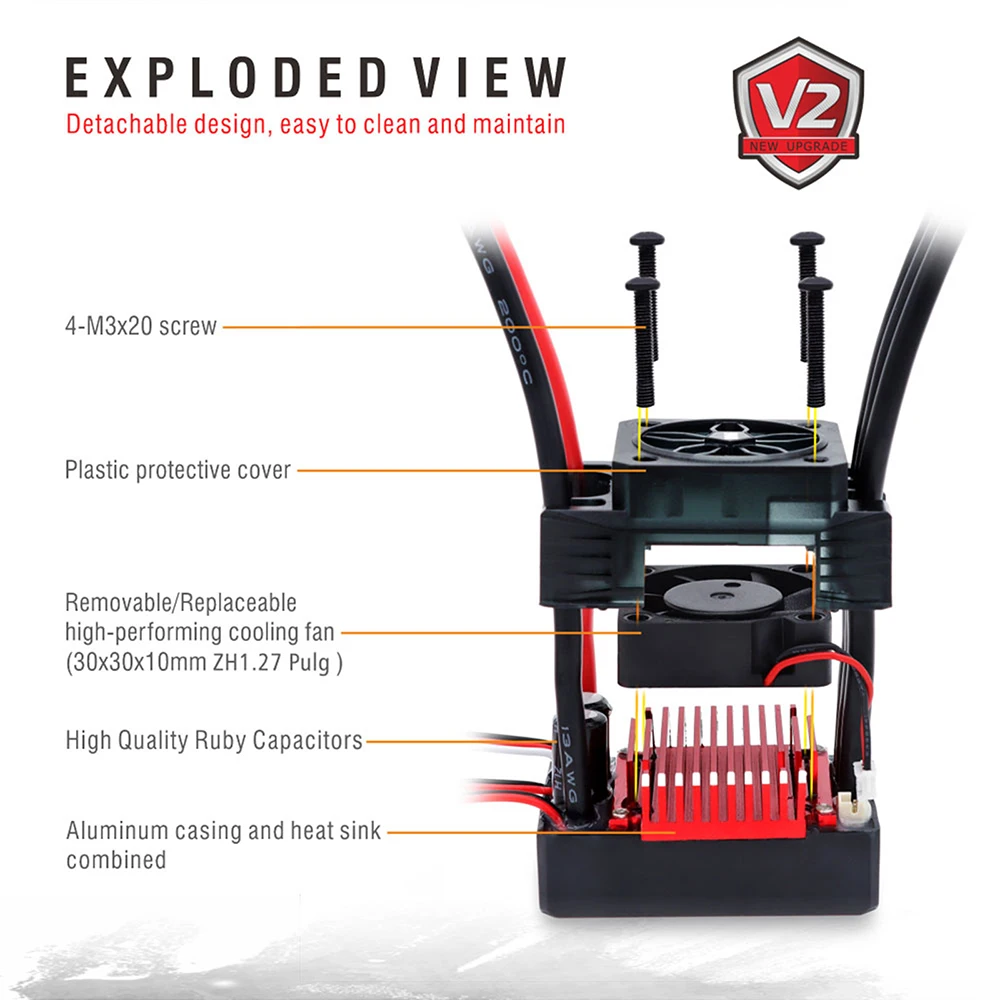

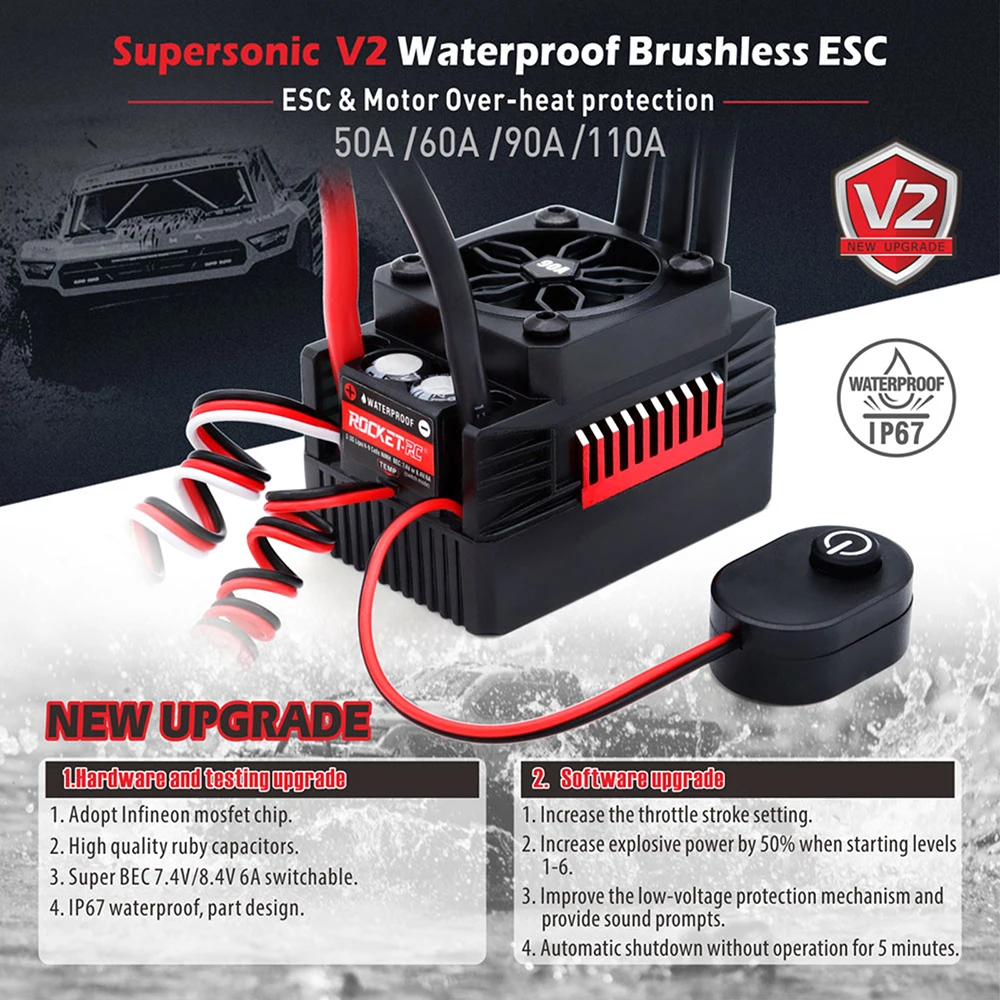

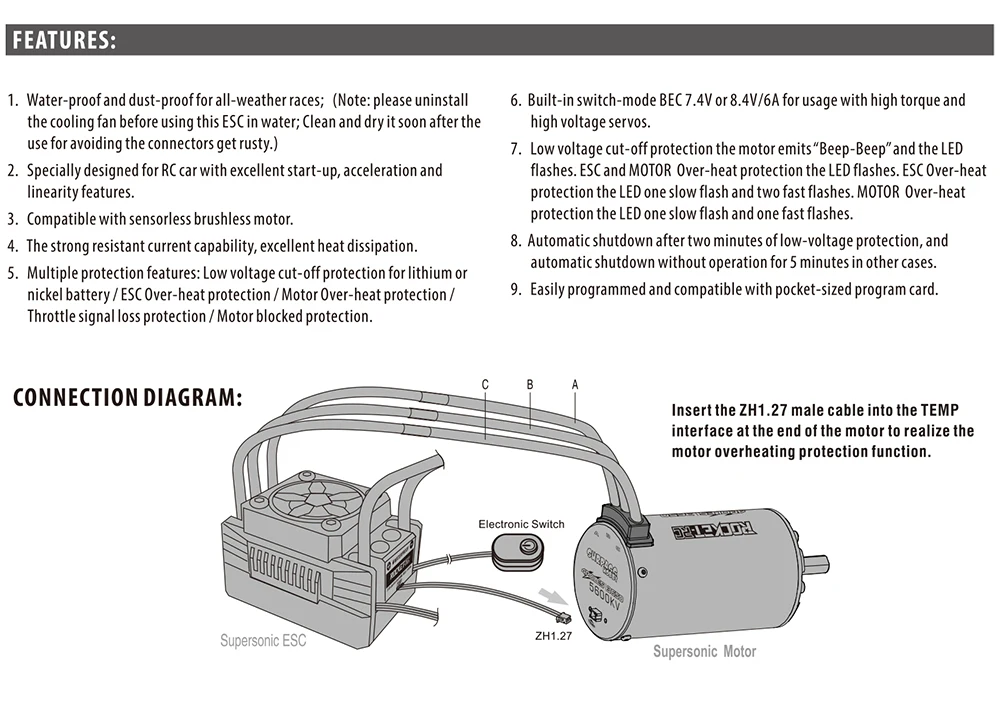

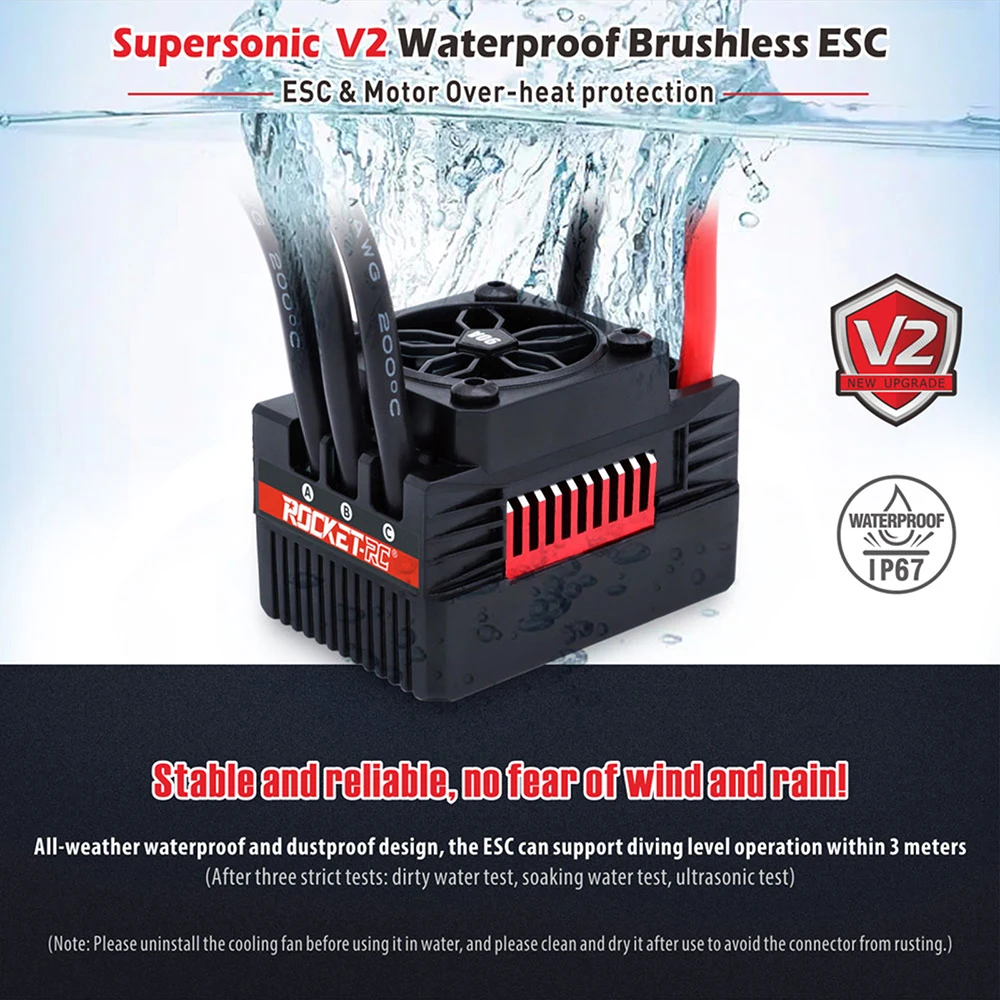

ESC Features: 1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fanbefore using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.) 2.Specially designed for RC car with excellent start-up,acceleration and linearity features. 3.Compatible with sensorless brushless motor. 4.The strong resistant current capability, excellent heat dissipation. 5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/ESC Over-heat protection / Motor Over-heat protection/ Throttle signal loss protection/Motor blocked protection. 6.Built-in switch-mode BEC 7.4V/8.4V 6A for usage with high torque and high voltage servos. 7.Easily programmed and compatible with pocket-sized program card.

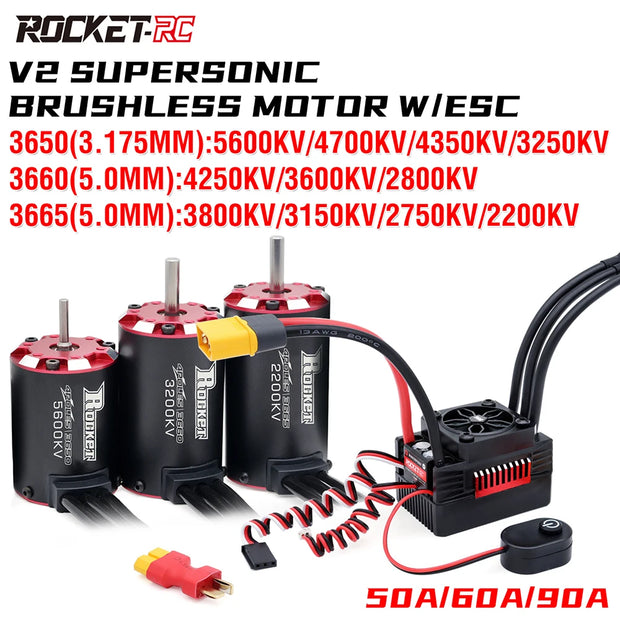

Descriptions: The Supersonic new motor has undergone strict high voltage test, internal resistance screening, precision dynamic balance, equipment locked rotor and other professional tests to ensure the factory quality of the motor.

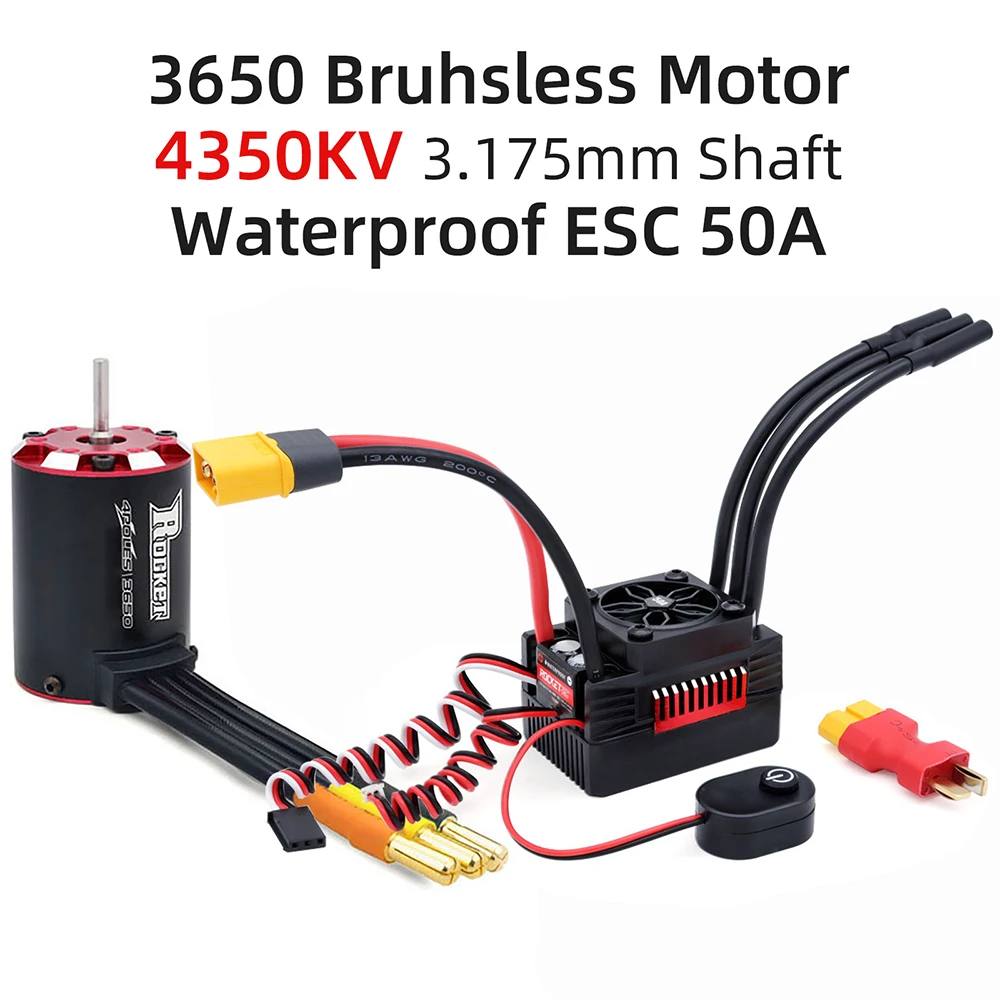

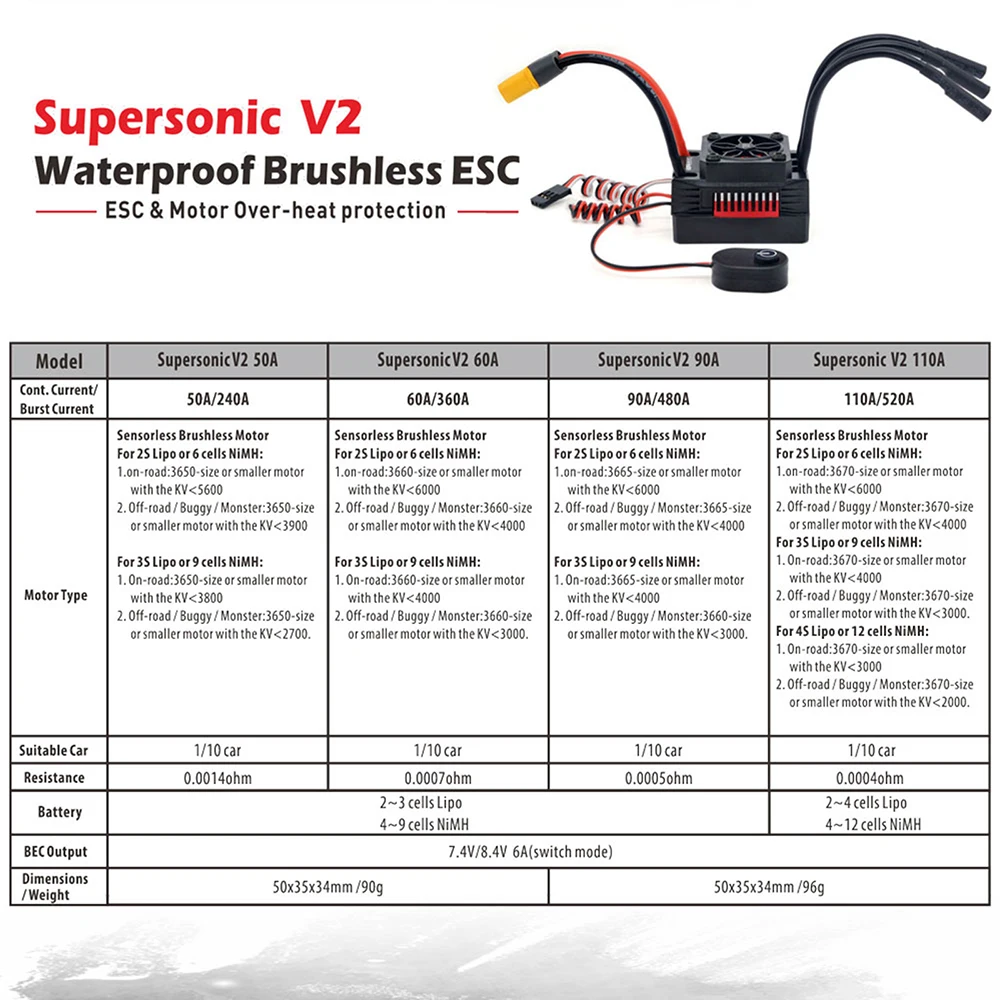

Supersonic 50A ESC Cont.Current:50A Burst Current:240A Motor Type: for Sensorless Brushless Motor For 2S Lipo or 6 cells NIMH : 1 . on-road : 3650-size or smaller motor with the KV < 5600 2 . Off-road / Buggy / Monster : 3650-size or smaller motor with the KV < 3900 For 3S Lipo or 9 cells NIMH : 1 . On-road : 3650-size or smaller motor with the KV < 3800 2 . Off-road / Buggy / Monster : 3650 -size or smaller motor with the KV < 2700. Resistance: 0.0014ohm Battery: 2S Lipo/4-9Cells NiMH
Supersonic 60A ESC Cont.Current:60A Burst Current:360A Motor Type: Sensorless Brushless Motor For 2S Lipo or 6 cells NIMH : 1 . on-road : 3660-size or smaller motor with the KV < 6000 2 . Off-road / Buggy / Monster : 3660-size or smaller motor with the KV < 4000 For 3S Lipo or 9 cells NIMH : 1 . On-road : 3660-size or smaller motor with the KV < 4000 2 . Off-road / Buggy / Monster : 3660 -size or smaller motor with the KV < 3000. Suitable for:1/10 Car Resistance: 0.0007ohm Battery: 2S Lipo/4-9Cells NiMH
Supersonic 90A ESC Cont.Current:90A Burst Current:480A Motor Type: Sensorless Brushless Motor For 2S Lipo or 6 cells NIMH : 1 . on-road : 3670-size or smaller motor with the KV < 6000 2 . Off-road / Buggy / Monster : 3670-size or smaller motor with the KV < 4000 For 3S Lipo or 9 cells NIMH : 1 . On-road : 3670-size or smaller motor with the KV < 4000 2 . Off-road / Buggy / Monster : 3670 -size or smaller motor with the KV < 3000. Suitable for:1/10 Car Resistance: 0.0005ohm Battery: 2-3S Lipo/4-9Cells NiMH

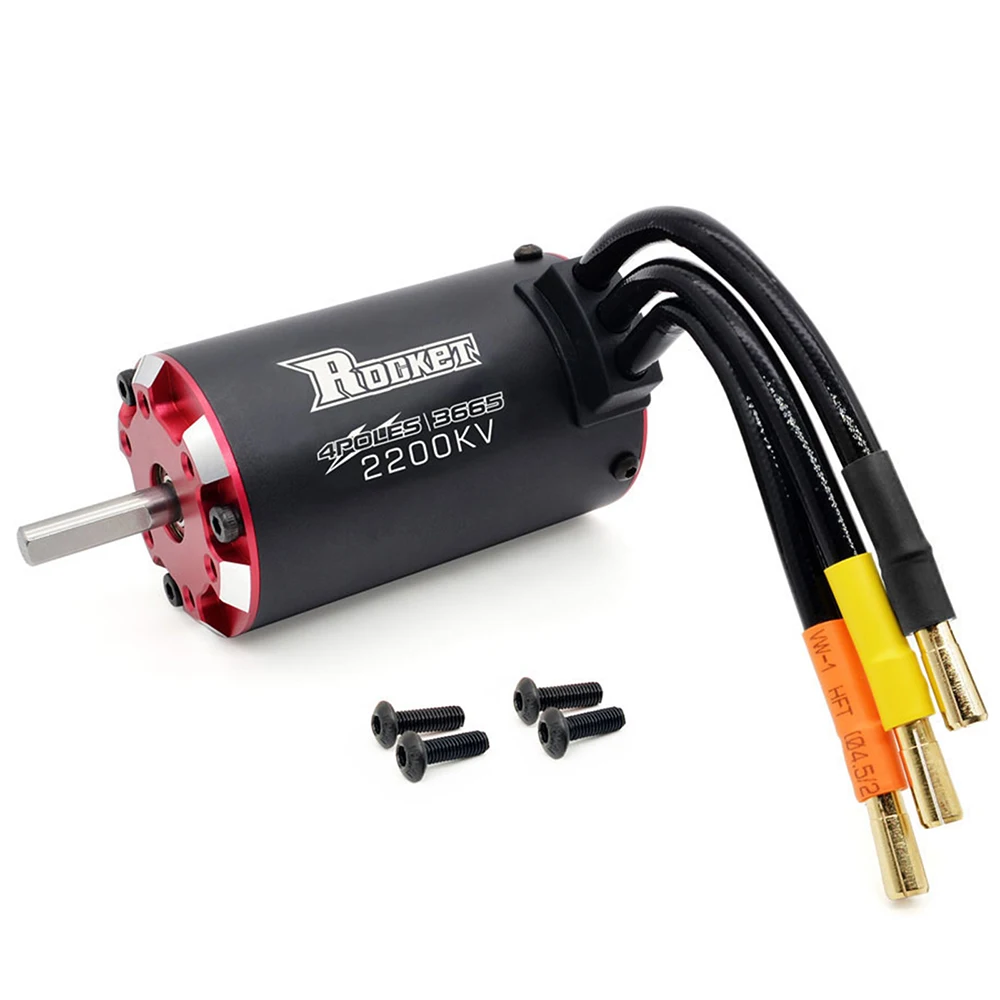

Package Included: 1 x Rocket Brushless Motor 1 x English Manual
Note: Only the above package content, other products are not included. 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
